Intelligaze 360

IntelliGaze camera from Germany. A sophisticated system with a high tracking rate and excellent working range. It can accommodate rapid or involuntary head movements. The IntelliGaze 360 includes the Starter Edition, Communication Edition and full computer control using the Alea Desktop.  Check out the new features including communication (text-to-speech) in the video

.

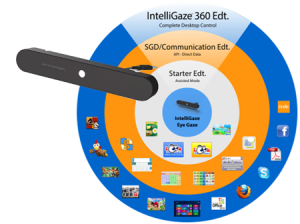

The Intelligaze 360 represents the "top tier" of the new upgradeable Intelligaze eye gaze camera. This camera provides all three levels of operation:

  • entry level mouse control for individuals beginning eye gaze
  • access and control of AAC software which is fully integrated with Intelligaze drivers (e.g. The Grid 2, Mind Express 4)
  • full computer control of mainstream software through Intelligaze Desktop

There are notably 3 components to a successful eye-tracking accessing system:

  1. a quality camera with high level specifications
  2. the interface or software either provided with the camera or a compatible third party program (for example The Grid 2 or Mind Express 4)
  3. the positioning of the user (factoring environmental conditions and mounting)

The Intelligaze 360 provides computer operation by eye-gaze control. The system can also be connected to portable tablet computer devices such as the Tellus 4Mobi 2 and Grid Pad EYE to provide eye-gaze access for communication. The Intelligaze 360 has been cleverly designed as a stand-alone unit so it can be used with a tablet computer or regular desktop monitor. As computer systems are upgraded, the Intelligaze can be transferred to the new computer. The Intelligaze has been designed from industrial components ensuring a long working life and also good compatibility with future versions of Windows operating systems.

Intelligaze uses the latest camera technology, very sophisticated image processing and calibration methods designed and manufactured by German engineering. It provides a reliable and functional eye gaze input, as it can tolerate natural and involuntary head movement. Having a separate camera also enables it to be transferred easily between computer systems e.g. from a desktop computer at home to one at school or it can be attached to a portable tablet computer such as the Grid Pad Eye if the user wishes.  Intelligaze’s German engineering and manufacturing ensures the latest camera technology and sophisticated image processing and calibration methods. The Intelligaze is able to tolerate natural and involuntary head movement.

This system can be used by people with Motor Neurone Disease, Cerebral Palsy, spinal injuries, Muscular Dystrophy and other conditions where operating a computer by other methods such as mouse, head, tracking, switch or touch screen is difficult.

The Intelligaze 360 camera is the sophisticated, accurate and reliable Intelligaze CAM30NT upgraded and re-badged as part of the new 3 level, upgradeable Intelligaze system!  Not all eye-gaze systems are the same. This system is designed and manufactured in Germany. It is a state-of-the-art system with a high tracking rate and excellent working range. It can accommodate rapid or involuntary head movements. As a separate module it can be used with tablet computers, speech generating devices or regular desktop monitors.

Tellus 4 Intelligaze

This powerful system integrates eye-gaze control for communication, environment control, internet browsing, email, Facebook, SMS and other options via full Wi-Fi and 3G connectivity. With excellent battery power and mounting plate the Tellus 4 Intelligaze is portable.

Please see details at Tellus 4 Intelligaze

Availability:

Usually in stock

Trial:

There are several options to trial the Intelligaze system:

"Come and Try" eye gaze:

Zyteq runs Eye Gaze Days at schools and centres where there are a number of students and clients wishing to try Eye Gaze.  For more information go to Eye Gaze Days or please call to express interest in hosting a day. For this option we would be using the Intelligaze Starter Edition, which is the "entry level" version of the Intelligaze 360.

Individual Evaluation:

Various Assistive Technology centres and services around Australia have Intelligaze equipment and options to make appointments for a trial.  Please contact us for more information. Zyteq also offers Evaluation Services.  For more information please go to Evaluation.

Rental:

Short-term rental of the Intelligaze camera is available.  This may be for a school, organisation or centre and the request must meet our terms and conditions.  Please note: long-term rental is not available.

Trial for AAC funding applications:

Tellus 4 Intelligaze, Mobi 2 Intelligaze and Grid Pad Eye are available through our Guided Evaluation scheme.  For more information please go to Equipment Trials.

New Features:

Single USB connection for data and power
Flat front and back-side
30 % enlarged head box volume
Automatic profiles - auto-detects which software is in use and applies relevant settings
Multi-modal input
Further increased gaze precision
Fully backward compatible
Easy operation centre

Features

The CAMERA | The Intelligaze camera module can be fitted to an existing monitor or tablet PC. There is a one-time calibration procedure.  The calibration can be repeated when needed to allow for changes in camera / monitor position or to enable multiple users to use the same system.  The software included allows multiple users to easily store their calibration profile. This allows for easy switching between users without having to recalibrate each time.  The camera and illumination unit is fully self-contained, connecting to the host computer via a USB2 port. Using the provided VESA-mount adapter, the camera and illumination unit can be attached to most TFT (e.g. LCD) screens.

The APPLICATION CENTRE | The application centre acts as a desktop for the user’s applications. It allows the user to easily access their programs by adding them to a specialised desktop. The IG--CAM30NT can then be configured differently for each program. For example you can alter – the length of time you need to focus on an item for it to be selected (known as dwell time), the type of cursor used and how to perform a mouse click. This is very handy allowing longer dwell times for programs that need it – for example word processing and shorter for other such as fast paced games.

Desktop 2.0 | Desktop 2.0 includes 3 pop-up toolbars for the user to access different mouse functions, common program tasks (e.g. cut and paste), setting changes and switch between Desktop 2.0 and the Application centre.  Further details and features of Desktop 2 in the manual under SUPPORT. The updated Alea Desktop 2.0 also contains a number of new features. Desktop 2.0 is available by selecting an icon at the top of the Application Centre. Desktop 2.0 allows the user to easily and intuitively access the Windows environment. Traditionally eye –gaze has simply emulated (mirrored) mouse actions. Desktop 2.0 uses GUI (graphical user interface). What this means is that it automatically locks into place when it recognises an object on the screen. This object might be a button, a text box or a scrollable list. There are also a number of other additional functions including an automatic and dynamic magnification of the desktop when selecting icons which are in close proximity to each other. (insert screen shot). The magnification is dynamic meaning that you can manoeuvre it to magnify different aspects of the screen.

CALIBRATION | The system needs to be calibrated to the individual once at system set-up. The quick interactive calibration is performed by following an animated dot with your eyes and fixating on several locations on the screen. A typical calibration takes less than 30 seconds. The calibration routine can be adapted to individual requirements by selecting the number of fixation targets, manual or fully automatic operation, target type and size, etc. The calibration can also take into account limited vision on a particular eye or strabism. After calibration the user will receive a report and graph containing results for both eyes. This allows even the user to estimate the accuracy and whether they should try the suggested improvement options. Use of Intelligaze can commence using the calibration results of another person.  The calibration dot can be changed to an image and settings adjusted to cater for users who have difficulty attending.  One point calibration is possible.

TRACKING STATUS | Because the system has no adjustable hardware parts, positioning the camera in relation to the user is the only task that needs to be performed before the first calibration. An easy-to-understand indicator (insert screen shot) helps the operator set-up the system. Head-location as well as eye tracking status are accessible to the operator ensuring that both the camera and user are in the correct position. This status window will also appear automatically during sue if the user moves out of position and will disappear again when the user is back in position.

APPLICATIONS | Gaze control can be used to access any application on your computer; for example, to generate speech (text-to-speech or symbol based), input text into other applications (e.g. Microsoft Word). In order to­ provide the most efficient performance the IG interfaces with a whole range of 3rd party software, such as The Grid 2 or Mind Express, as well as standard Windows applications.

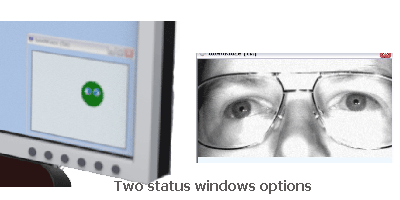

Status window:

Intelligaze 360 offers two forms of checking "status' of the user.

The Green face offers the most information indicating when the user is in the best position in relation to the camera. The face changes to yellow and red to indicate that the camera sees the person, but the position is not ideal.  A cross appears when  the camera can no longer detect eyes.  The balck and white  video of the person can be used if required.  This generally does not provide as much information as the coloured face.  Some users may have a preferences for one type of feedback over the other.



Desktop V2.0

It is possible to access many mainstream programs using the Intelligaze IG-CAM30NT. Desktop V2.0 is the sophisticated user interface developed by Alea and supplied with the Intelligaze camera.  If this is not required it can be by-passed for those not yet ready to operate all aspects of computer software.  Below are screen shots of the Desktop V2.0 to illustrate the functions.  The menus are accessed by gazing slightly off the monitor to the left, right, top and bottom.

Tracking System

  • Tracking technology | Hybrid infrared video eye- & head-tracking Binocular & monocular tracking
  •  Working Volume (centered at 600 mm distance) | 320 x 200 x 250 mm3 [WxHxD]
  •  Accuracy: static | 0.5°, typical
  •  Accuracy: over full working volume | 1°, typical
  •  Sampling Rate| 40 / 30 / 20 Hz
  •  Max. head-movement velocity | 15 cm/s
  •  Recovery-time after tracking loss (head was too fast or moved out of range) | 40 ms
  •  System Dimensions | ca. 285 x 44 x 38 mm3 [WxHxD]
  •  Mounting Options | on monitor via VESA-adapter, on Tablet-PC via customized interfaces
  •  System Weight ca. 280 gms.

Host System

The host system may be a Windows 7 or 8 desktop computer, Windows tablet, Windows laptop (usuallly with external monitor), or Windows based Speech Generating Device.

  •  CPU | Atom CPU with 2 cores + hyper-threading or core i3 (AMD CPU equivalents will also work)
  •  RAM | 2 GB
  •  Interface | 1 free USB-2 port
  •  Monitor | TFT flat screen 12" - 22" with VESA mount
  •  Please ask for customized adapters for Tablet PCs, etc.
  •  Operating System Microsoft Windows 7, Windows 8.

Choosing a computer / tablet for use with Intelligaze (PDF download)

IntelliGaze 360 - new text-to-speech function - instruction  (PDF Download)

IntelliGaze CAM30NT Quick Start Guide (PDF)

IntelliGaze installation and service manual (PDF)

IntelliGaze Desktop V2.0 manual (PDF)

IntelliGaze and Windows 8 (link to open video)

Freedom Through My Eyes: an advanced eye gaze study case study (link to video)  Video by Steve Evans demonstrating The Grid 2

IntelliGaze Desktop V2.0: operating Skype with gaze control (link to video)

IntelliGaze Desktop V2.0 - operating MS Excel 2010 with gaze control (link to video)

How to update the IntelliGaze software (PDF download)

Please note: some videos show the original IntelliGaze camera.  Desktop V2.0 can be used with the original and current model Intelligaze cameras.

Part Code Part Name / Description Price GST
Eye gaze Camera only
IG-360 Intelligaze 360

Intelligaze 360 eye gaze camera with Desktop V2.0, VESA mount plate, power adapter (for USB cables longer than 1.5 m only) up to 1 hour remote support for installation, set-up & initial training
Delivery Prices Included

$4785 $0.00
Quote only
IntelliGaze 360 Do-It-Yourself kits
IG-360-DIY-CAK Intelligaze 360 Do-It-Yourself Computer Access Kit

Intelligaze 360 eye gaze camera, with Desktop V2.0, and including universal tablet adapter and mounting plates with TableStand by REHAdapt, With power adapter (only needed for USB cable extension greater than 1.5 M) (Supply your own tablet) (Supply your own tablet/ Do-it-yourself set-up and installation)
Delivery Prices Included

$6340 $0.00
Quote only
IG-360-DIY-CK Intelligaze 360 Do-It-Yourself Communication Kit

Intelligaze 360 eye gaze camera, with Desktop V2.0, The Grid 2 and including universal tablet adapter and mounting plates with TableStand by REHAdapt, With power adapter (only needed for USB cable extension greater than 1.5 M) (Supply your own tablet/ Do-it-yourself set-up and installation)
Delivery Prices Included

$7160 $0.00
Quote only
IntelliGaze 360 Supported Installation & Setup 360 kits
IG-360-SIS-CAK Intelligaze 360 Supported Installation & Setup - Computer Access Kit

Intelligaze 360 eye gaze camera, with Desktop V2.0, and including universal tablet adapter and mounting plates with TableStand by REHAdapt, With power adapter (only needed for USB cable extension greater than 1.5 M) (Supply your own tablet) (Supply your own tablet/ Do-it-yourself set-up and installation)
Delivery Prices Included

$6790 $0.00
Quote only
IG-360-SIS-CK Intelligaze 360 Supported Installation & Setup - Communication Kit

Intelligaze 360 eye gaze camera, with Desktop V2.0, The Grid 2 and including universal tablet adapter and mounting plates with TableStand by REHAdapt, With power adapter (only needed for USB cable extension greater than 1.5 M) (Supply your own tablet/ Up to two hours remote support for set-up, installation and initial training OR send your tablet to us for set-up and installation, then up to one hour of remote initial training)
Delivery Prices Included

$7540 $0.00
Quote only
IntelliGaze upgrades
DT-V2 Alea Desktop V2.0

Add Alea Desktop V2.0 to IntelliGaze 360
Delivery Prices Included

$493 $0.00
Purchase / Quote
Accessories

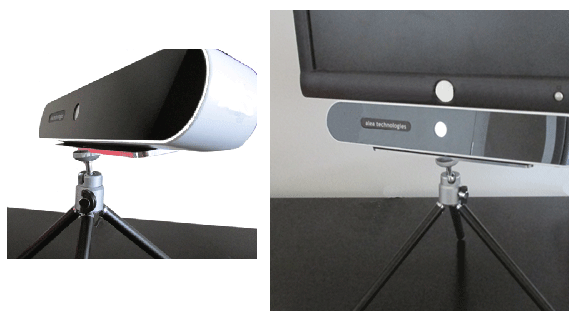

IG-TMP IntelliGaze tripod mount plate

Metal mount plate with 4M thread for standard camera fitting for tripod or other generic camera mount.
Delivery Prices Included

$75 $0.00
Purchase / Quote
