APPlicator and APPlicator MAX, by Pretorian Technologies, provides easy switch access to the Switch Accessible Apps, and iOS7 (and beyond) scanning capability on iPad and iPhone, also media access to iPad, iPhone and iPod.

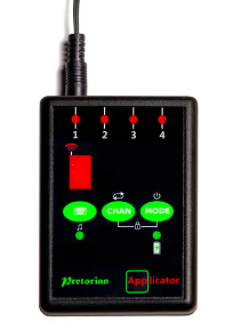

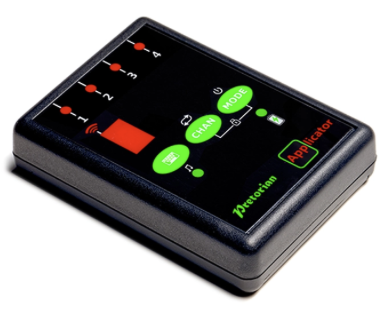

APPlicator

Specifically designed around user needs, APPlicator is simple to set-up and use, but loaded with features.

How it works

• Pair APPlicator with your iPad® by selecting it in the Bluetooth menu (no PIN entry required)

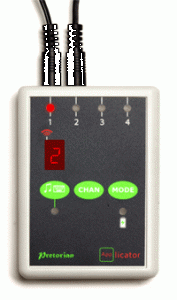

• Connect any wired switches to one or more of the four, programmable, switch inputs.
• Using the built-in display, select the function of each switch from the choice of 24 mouse/keyboard commands.
• For data entry press the virtual keyboard button to deploy the on-screen keyboard

Accessing your Music Playlist

• Press the Quick Media button for preconfigured access to play/pause, skip forward and back and Timed Play (10 seconds)
• For more auditory functions use the built-in display to select from play/pause, skip forward, skip back, volume adjustment, timed play and mute.
• Use up to four switches for faster access.
• Play music in timed-duration mode to add interest and inspiration

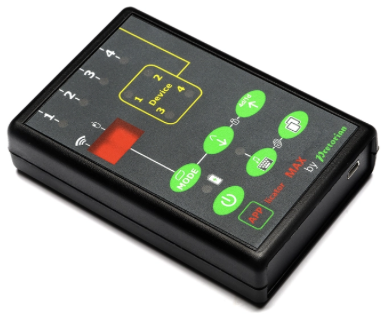

APPlicator MAX

APPlicator MAX is a new addition to the APPlicator line up and has been specifically designed for switch users who need to use a single switch or set of switches with multiple devices, or who need to have multiple levels of settings for their switches for different apps on a single device. It may be used with up to four devices of all types, including AAC devices, iPad/iPhone, Android devices, PC’s/Laptops with Bluetooth support, Mac’s, Chromebooks and Apple TV.

APPlicator MAX allows quick and easy switching between devices using either a separate switch or an extended press of one of the functional switches.  Up to four switches may be configured, each of which is programmable with a different function for each of the devices, allowing a single switch or set of switches to control your devices in any number of different ways.

APPlicator MAX

APPlicator MAX allows quick and easy switching between devices using either a separate switch or an extended press of one of the functional switches.

Did you know?

• APPlicator Max includes all mouse functions and swipe up, down, left and right, making it suitable for Bluetooth enabled PCs and AAC devices.
• Up to four switches may be configured, each of which is programmable with a different function for each of the devices, allowing a single switch or set of switches to control your devices in any number of different ways.

APPlicator MAX has a large number of features to give you the flexibility you need. Properly configured, APPlicator MAX creates a powerful method for seamlessly connecting all of your devices to ensure you get the very best from them.

Features ( in addition to standard APPlicator )

• Allows up to four switches to be used on multiple devices/ apps without re-plugging/ re-programming.
• Connects to up to four devices (Multiple Devices use-case).
• Alternatively, may be set to Single Device, Multiple Levels use-case (4 Levels).
• Fifth switch to select device (or extended press on one of the other four).
• Function of each switch may be individually selected for each device.

APPlicator MAX may be configured to work in one of two distinct ways:

• Multiple Device use-case - APPlicator Max connects to up to four devices and may switch between them using a dedicated switch or a long press of one of the other switches. Useful when you have several devices that you wish to control from a single switch, or set of switches.
• Single Device, Multiple Levels use-case - APPlicator Max connects to a single device and may be switched between four Levels of switch functions, allowing it to used with multiple apps requiring differing switch functions on the same device.

APPlicator

• Size:  90mm x 64mm x 18mm

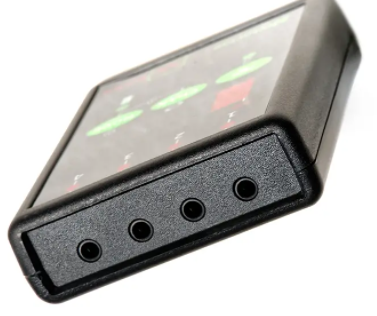

• Connections: four x 3.5 mm sockets for wired switches
• Connection to device:  Bluetooth
• Power: rechargeable lithium-ion battery
• Operating Range: 20 metres

APPlicator is compatible with the following Apple products:

• iPad - all models
• iPod Touch 3rd Generation onwards
• iPhone 3GS onwards

APPlicator MAX

• Connects to up to four devices (Multiple Devices use-case).
• Alternatively, may be set to Single Device, Multiple Levels use-case (4 Levels).
• Allows up to four switches to be used on multiple devices/ apps without re-plugging/ re-programming.
• Fifth switch to select device (or extended press on one of the other four).
• Function of each switch may be individually selected for each device.
• QuickMedia™ mode allows instant access to media player functions on selected devices.
• Any keyboard keystroke can be chosen.
• Full set of mouse functions- left click, right click, double click, drag and cursor movement.
• Integral button allows on-screen keyboard to be displayed or hidden at any time.
• Manual Power-Off button.
• Button Lock feature to prevent accidental/ unauthorised changes to settings.
• Single Shot setting to prevent multiple activations.
• 20m (64’) operating range.
• Integral lithium-ion rechargeable battery, charged from any USB socket.

APPlicator: User Guide (PDF download)

APPlicator MAX: User Guide (PDF Download)

Using Applicator with Switch Control in iOS7, by Pretorian (link to video)

Configuring Applicator for Switch Control: Manual Scanning, by Pretorian  (link to video)

Configuring Applicator for Switch Control: Auto Scanning, by Pretorian (link to video)

Home function in Switch Control by Pretorian  (link to video)

MY APPLICATOR IS NOT WORKING FOR ME:  (PDF download)

How to check your APPLICATOR Please do this before contacting Zyteq to report problems. (PDF DOWNLOAD)

Supplied with:

• Mini USB charging cable
• Instructions

Switch/es not included.

Switches available from Zyteq (click to open Zyteq web page)

Will the APPlicator work with Android tablets?

Android tablets vary enormously in specification so compatibility with these products is dependent upon the specific tablet. Please contact Pretorian Technologies or Zyteq for guidance.

Which switch interface should I choose?
