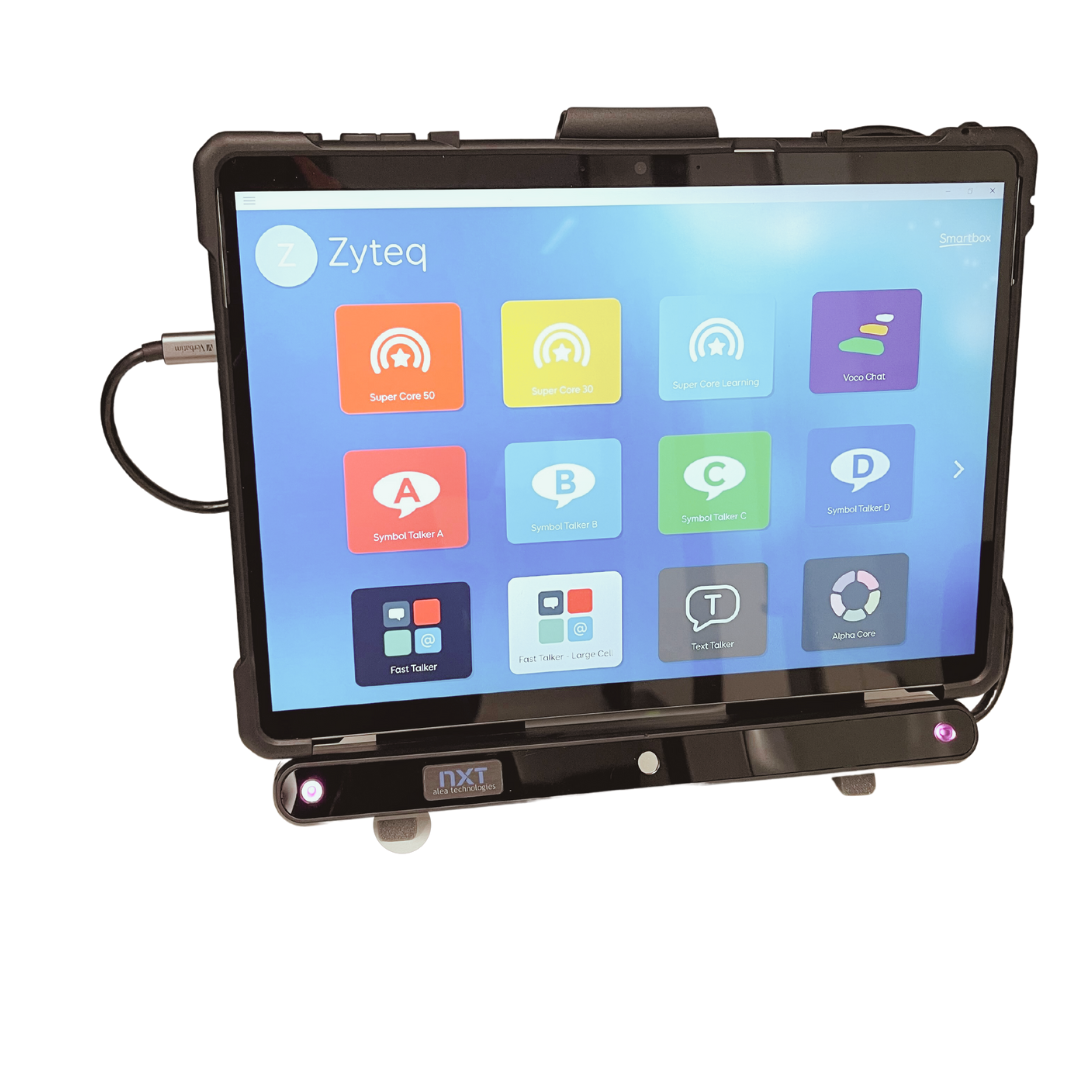

Our Microsoft Surface Pro eye gaze bundle provides a complete system, and are designed to suit people who need more than the tablet alone but are not needing the fully featured dedicated devices.
Zyteq's Microsoft Surface Pro Bundles include:
Surface Pro 10 with Intel Core Ultra 5 processor, 8GB RAM, 256GB SSD, Win 11 Pro (upgrade to i7 model available)
Protective heavy duty case
Mount plate (mount not included)
Carry bag
USB hub with 3 x USB-A and 1 x USB-C ports
USB Bluetooth Adapter
Zyteq's after-purchase service:
Level 1 support for the life of the device
2-year Manufacturer's Commercial Warranty
Microsoft Extended Hardware Service
Microsoft Extended Hardware Service for up to three years including two replacement claims for accidental damage
Dimensions of Surface Pro: 287mm x 209mm x 9.3mm
Weight of Surface Pro: 879g
Display: Screen: 13” PixelSense™ Flow Display, Resolution: 2880 x 1920 (267 PPI), Aspect ratio: 3:2, Touch: 10-point multi-touch Gorilla Glass 5
Memory: 8GB LPDDR5x RAM
Processor: Intel Core Ultra 5 135U
Security: Firmware TPM, Enterprise-grade protection with Windows Hello face sign-in
Software: Windows 11 Pro
Sensors: Ambient colour sensor, Accelerometer, Gyroscope, Magnetometer
Storage: Solid-state drive (SSD): 256GB
Battery life: Up to 19 hours of typical device usage
Graphics: Intel® Graphics
Connections: 2 x USB-C® with USB 4.0/Thunderbolt 4, 1 x Surface Connect port, 1 x Surface Type Cover port
Cameras and video: Windows Hello face authentication camera (front-facing), front-facing camera with 1080p full HD video, 10.0MP rear-facing autofocus camera with 1080p HD and 4k video
Audio: Dual far-field Studio Mics, 2W stereo speakers with Dolby® Audio™ Premium
Connectivity: Wi-Fi 6E: 802.11ax compatible, Bluetooth Wireless 5.3 technology
Exterior: Aluminium Casing
Colour: Matte Black
Physical buttons: Volume, Power
Warranty: 2-year commercial warranty (This is available through our purchase partner. The standard warranty is 1-year limited warranty).
Dimensions: 300mm x 227mm x 13mm (11.81" X 8.94" X 0.51")
Weight: 0.48kg (1.06 lbs)
Shockproof Rating: MIL-STD-810G 516.6
There have been some issues reported in regards to connecting a phone to a Surface Pro, but this does not appear to be all phones or all Surface Pros. If you attempt to connect via Grid 3 using the Smartbox instructions and the connection is unsuccessful, Smartbox recommend the Plugable USB Bluetooth Adapter as a tested product to allow phone connection through Grid 3. This adapter is included as standard in our bundles.
|
Working Principle |
Binocular, dark-pupil eye- and head-tracking |
|
Working Distance |
50 - 85 cm [19 - 33.5 in.] |
|
Track-Box |
32 x 20 x 35 cm @ 62 cm [12.6 x 7.9 x 13.8 in. @ 24.5 in.] |
|
Tracking Speed |
60 Hz |
|
Recovery Time |
16 ms |
|
Gaze Accuracy |
typ. 0.5°/1° (static / full working range) |
|
Monitor Sizes |
up to 24", 16:9. Recommended 12"-17". [Larger screens may work with individual users or reduced accuracy] |
|
Power Consumption |
< 2.5W avg. |
|
Processing Load |
typ. <5% CPU [Std PC i5, 8th gen] |
Level 1 support is included with purchase of Zyteq’s major systems. This is for support which includes “basic issues and questions of a straight-forward and simple nature,” and it is available during business hours (AEST). Free advice and support is also available where instructions and resources are provided for a "do-it-yourself" solution. Many useful support instructions and troubleshooting strategies are located on our website, which is continuously accessible. For the more involved questions or for a personalised training session the Premium Plan is included for the first 3 months, and can be renewed after expiry.
A 3 month plan is supplied with your device. This is over and above Level 1 support and is ideal for help with getting started with a new system, or for a block of assistance for to cover a special setup or to receuve training on an aspect of the device or programming of the software.
Microsoft Extended Hardware Service is cover for Complete Accident. This option extends the commercial warranty from 2 to 3 years & you can make up to 2 claims within this period for accidental damage.
The Surface Tablets we supply come with a 2 year commercial warranty. This provides a number of extra terms over the the standard warranty, for example this means that a device found to be faulty within 30 days will be replaced. You can access the Support for Business and register a service request directly with Microsoft, or we can access this service on your behalf. The standard retail warranty is just 1 year.
There have been some issues reported in regards to connecting a phone to a Surface Pro, but this does not appear to be all phones or all Surface Pros. If you attempt to connect via Grid 3 using the Smartbox instructions and the connection is unsuccessful, Smartbox recommend the Plugable USB Bluetooth Adapter as a tested product to allow phone connection through Grid 3.
| Part Code | Part Name / Description | Price | GST | |
|---|---|---|---|---|
| AU-IT0814 |
Eyegaze AAC Bundle - Surface Pro - IntelliGaze NXT - Grid 3 - UAG Case
Microsoft Surface Pro 11, Intel Core Ultra 5 processor, 16GB RAM, 256GB SSD, Windows 11 Pro (including power supply, quick start guides, safety and warranty documents) + IntelliGaze NXT eye gaze camera + Grid 3 one-time purchase license + DAESSY Surface Pro Holder (UAG case) + tempered glass screen protector + Alea stand & mount bracket + Daessy VESA mount plate + USB hub + USB Bluetooth adapter + carry bag + packaging and postage. |
$8490.00 | $0.00 | |
| Optional add-ons | ||||
| MSSP10-i7_UPGRADE |
Upgrade Microsoft Surface Pro to i7, 16GB RAM, 512GB SSD
Upgrade to a Surface Pro 10 i7-1255U, 16GB RAM, 512GB SSD. |
$1300.00 | $0.00 | |
| AU-IT0158 |
PODD for Grid 3
PODD for Grid 3 Electronic License (PODD 15 and 60 - all grid set layouts). Requires Grid 3. |
$270 | $0.00 | |
| HIRE of Microsoft Surface Pro - Eye Gaze Bundle | ||||
| AU-IT1022 |
Surface Pro-Eye Gaze Bundle-AAC-Clinical Hire-2 weeks
Hire - 2 WEEKS - SURFACE PRO EYE GAZE BUNDLE AAC, with Grid 3 installed. This hire is a partnership between clinician and client/participant/patient. Includes delivery both ways; a training / setup remote session (45 minutes) and phone support and online resources. Pre-payment required. 50% of rental fee is deducted from purchase when a confirmed order is received within 6 months of start of hire period. |
$850 | $0.00 | |
| AU-IT1023 |
Surface Pro-Eye Gaze Bundle-AAC-Clinical Hire-4 weeks
Hire - 4 WEEKS - SURFACE PRO EYE GAZE BUNDLE AAC, with Grid 3 installed. This hire is a partnership between clinician and client/participant/patient. Includes delivery both ways; a training / setup remote session (45 minutes) and phone support and online resources. Pre-payment required. 50% of rental fee is deducted from purchase when a confirmed order is received within 6 months of start of hire period. |
$1495 | $0.00 | |
| AU-IT1018 |
Surface Pro-Eye Gaze Bundle-AAC-Clinical Hire-12 weeks
Hire - 12 WEEKS - SURFACE PRO EYE GAZE BUNDLE AAC, with Grid 3 installed. This hire is a partnership between clinician and client/participant/patient. Includes delivery both ways; a training / setup remote session (45 minutes) and phone support and online resources. 50% of hire fee is credited to purchase of new device when a confirmed order is received within 6 months of start of hire period. *Service Agreement with terms and conditions apply. |
$4350 | $0.00 | |
