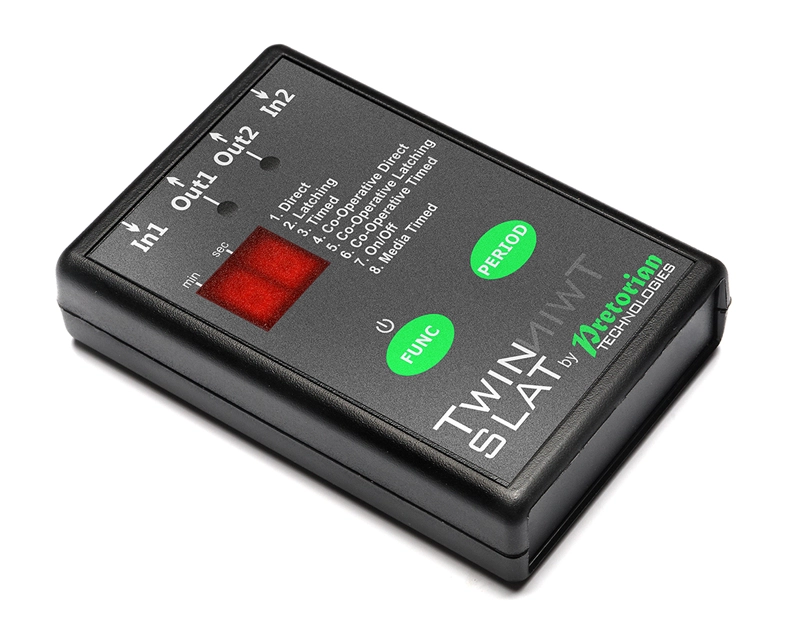

Twin Slat by Pretorian

Twin SLAT is a highly flexible toy/ battery-power appliance controller for one or two toys, or other low-voltage appliances. It benefits from the following mode settings:

• Direct (outputs activate for as long as the switch is pressed)
• Latched (press the switch once for on and again for off)
• Timed (selectable time period from 5 seconds to 1 hour)
• Co-Operative Direct (turns on both outputs for as long as both switches are pressed)
• Co-Operative Latched (toggles both outputs whenever both switches are pressed)
• Co-Operative Timed (turns on both outputs for a period between 5 seconds and 1 hour when both switches are pressed)
• On/Off (Switch 1 turns on both outputs; Switch 2 turns off both outputs)
• Media Timed (pulses the output at the beginning and end of timer period)

When a timed output is selected, the time period is set using a two-digit LED display, in either seconds or minutes, between 5 seconds and 1 hour. A timed output can be cancelled early by pressing one button.

Co-Operative modes require two users to work together to turn on a toy or appliance. On/Off mode may either be used co-operatively (one user takes charge of ‘on’ and the other ‘off’) or can be used to great effect in separating the on and off tasks for a single user with cognitive impairment.

Media Timed mode is ideal for playing music for a limited period on media players with play/pause function). Some toys also work in a similar way and would benefit from this mode setting.

• Two independent channels.
• Two 3.5mm jack plug outputs via supplied leads.
• Choice of 8 operating modes
• Long battery life.
• Selectable time periods in timed modes.
• Automatic power saving mode- no on/off switch required (manual power-down option included).

PDF User document
