VENTO puff switch by QUHA

Quha Vento is standalone* contactless puff switch for handsfree switch control for computer, devices or environment control. It is compatible with any device with a 3.5 mm switch connector. The switch is activated with a simple puff into the microphone located at the end of the flexible sensor arm. (*standalone means it is not part of the QUHA Zono Gyroscopic mouse. It is a switch that can be connected to other devices in the usual way).

Overview
Tech Specs
Images

UNIVERSAL CONNECTIVITY – REPLACES ANY SWITCH WITH A 3.5 MM PLUG

Environmental control
Nurse calls
Mouse clicks with assistive mice

HYGIENIC – NO PHYSICAL CONTACT BETWEEN THE USER AND THE PUFF SENSOR

Contactless puff activation
Easy to clean coating
Enables one device to be shared between multiple users

MANY MOUNTING OPTIONS

Standard ¼” UNC camera thread

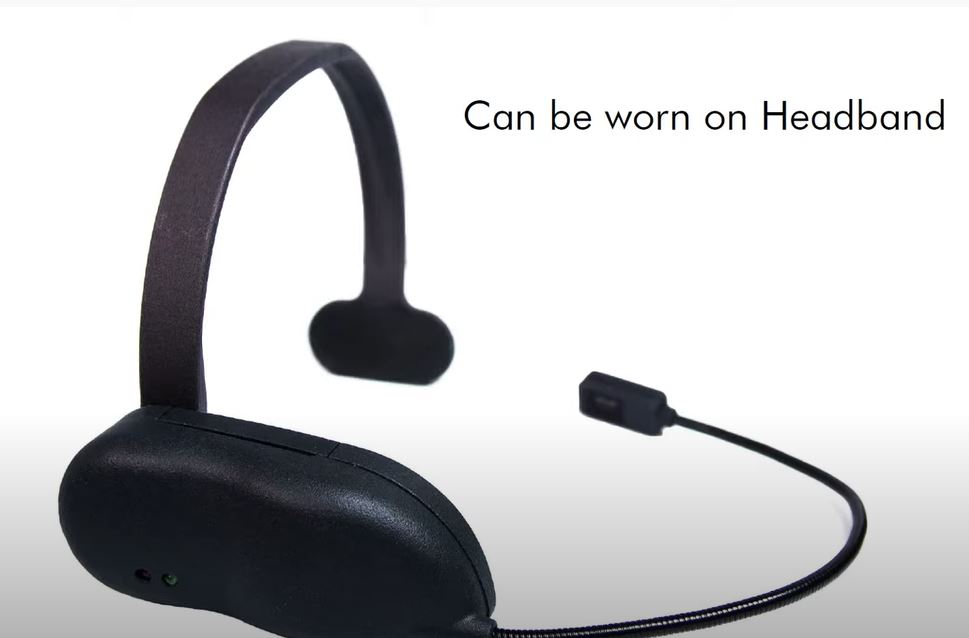

Flexible attachment loop for Headband (Optional Vento Headband available)
Functional design enables fixing with a cable tie or velcro strap

EASY PLUG AND PLAY INSTALLATION

Easily replaceable and inexpensive AAA battery
Long lasting battery life up to 2 years
Two sensitivity settings
Indicator lights
Buzzer on/off

See details tab for images and mounting options.

Technical Specifications

Supplied with: Vento switch with puff sensor arm, battery, flat-head screwdriver and user manual
Dimensions: Length 98 mm, width 41 mm, height 26 mm, vento arm length 220 mm and weight 97 g without batery. Cable length 180 cm.
Battery: AAA battery, battery life up to 2 years depending on use and battery type
Mounting: ¼” UNC thread (camera mount)
Indication: Audible and visual indicators for switch activation and low battery
Output: 3.5 mm audio plug (mono), opto-isolated normally open (NO) output, load current up to 100 mA, isolation 1500 VRMS
Warranty: 2 years
