Switches Reference Table

Switch Reference Table: technical specifications of switches supplied by Zyteq.



Switch

Plate Surface Area (mm)

Force to Activate (gms)

Travel to Activate (mm)

Dimensions

Connection

Weight

Other

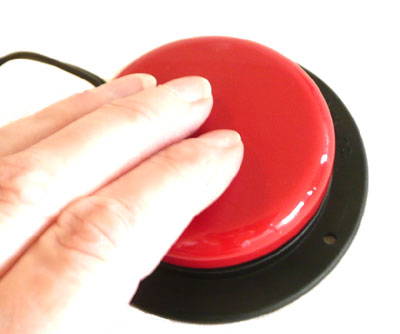

Jelly Bean Twist

63.5 mm diameter

71 0.64   Wired





Big Beamer

127 mm diameter

156 1.14 127 mm diameter Wireless



10 metre range

Requires receiver

Big Buddy

115 mm diameter

150 1.17 115 mm diameter Wired



Big Red

127 mm diameter

156

1.14

127 mm diameter

Wired





Buddy Button

63 mm diameter

100 1.2 63 mm diameter Wired





Candy Corn Proximity Switch

450 mm2

NA

NA

3 x 50 mm

Wired





Cap Switch

50.8 mm diameter

255

2.03   Wired





Chin Switch

20 mm x 70 mm

46 - 107

0.9



Wired





Cup Switch

50.8 mm diameter

255 2.03   Wired



Flex

Length 63.5 mm with tip 40mm

180

13   Wired



Grasp

Length 76.2 mm with tip 35 mm diameter

300

5.08   Wired

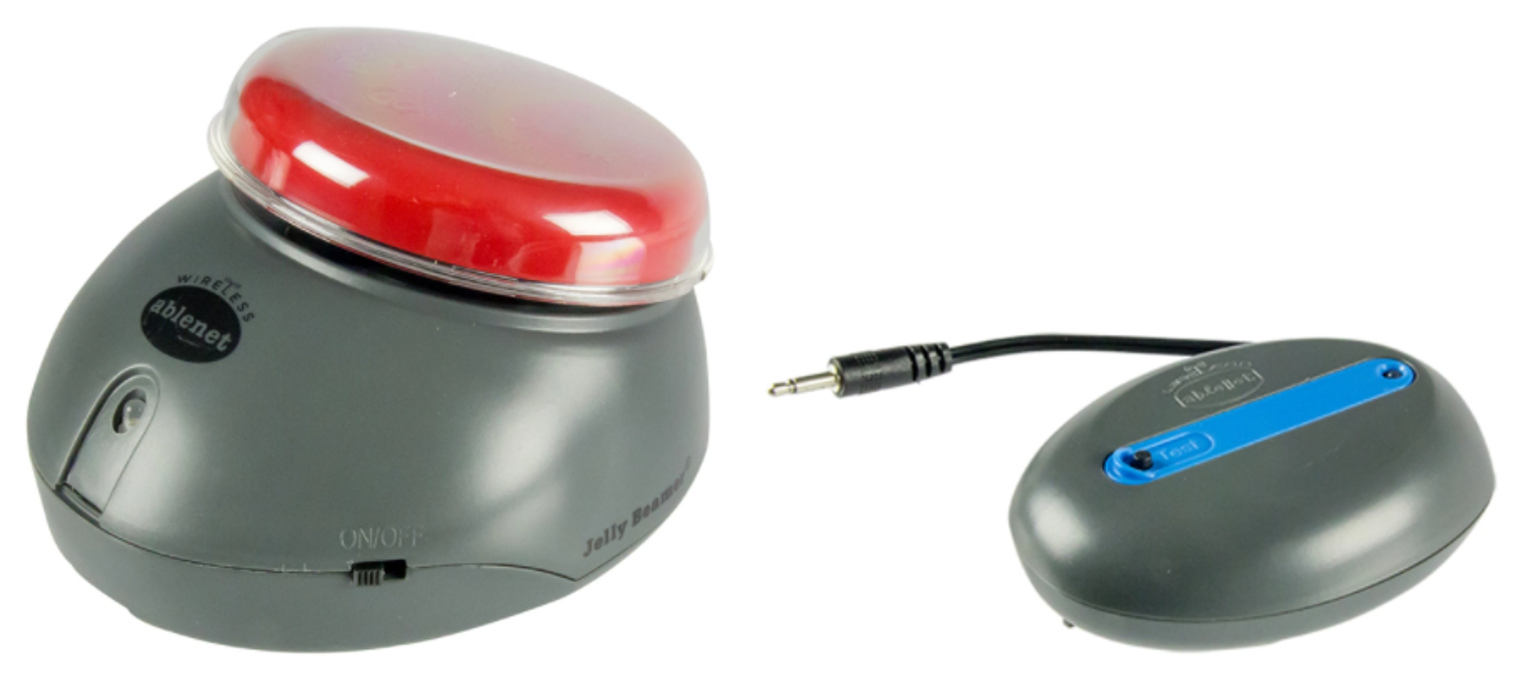

Jelly Beamer Twist Wireless Transmitter

63.5 mm diameter

43

0.38   Wireless

10 m range
External switch jacks
Requires receiver

Leaf

75 mm diameter

50

13   Wired

Micro Light

45 mm x 13 mm

10 7

45 mm x 18 mm

Wired

Mini Cup

25 mm diameter

130 0.3

Wired





Pillow

80 mm diameter

180 20

80 mm diameter

Wired



Includes velcro and pin

Plate

50.8 mm diameter

50 0.5

Wired





Ribbon

101.6 mm x 50 mm

110

10 degrees deflection

101.6 mm x 50 mm

Wired





SCATIR Switch

Infrared sensor

NA

Calibrate



Wired



Gooseneck or eyeglass mounts available

Specs

35 mm diameter

100

0.64



Wired





String Switch

String pull

NA

43

50 mm x 65 mm

Wired





Trigger

12.7 mm x 12.7 mm

300

4



Wired





Wireless Receivers

(Original & SLAT)

NA

NA

NA



Wireless



SLAT Modes: direct, latch, timed minutes, timed seconds

Blue2 Bluetooth Wireless Switch

63.5 mm x 81 mm

340

18



Bluetooth wireless



Magnetic mounting

Freehand

10 mmx 10 mm

Finger contact

Finger to palm movement



Wired



Programmable

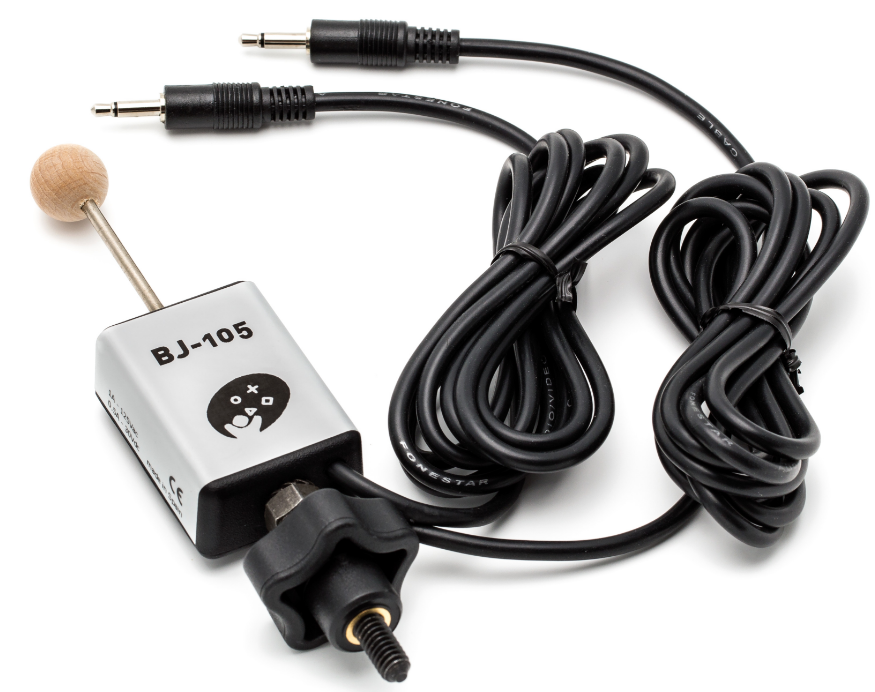

Mini Joystick with Push

50.8 mm

Joystick 120 g

Push 200 g

Joystick 13 mm

Push 2 mm



Wired



Pneumatic, Long and Short

Pneumatic

NA

3 in w/c (g)



Wired



Rocker

76.2 mm x 76.2 mm each

130

2.0

154 mm x 77 mm

Wired
