VENTO puff switch by QUHA

UNIVERSAL CONNECTIVITY – REPLACES ANY SWITCH WITH A 3.5 MM PLUG

• Environmental control
• Nurse calls
• Mouse clicks with assistive mice

HYGIENIC – NO PHYSICAL CONTACT BETWEEN THE USER AND THE PUFF SENSOR

Contactless puff activation
Easy to clean coating
Enables one device to be shared between multiple users

MANY MOUNTING OPTIONS

Standard ¼” UNC camera thread

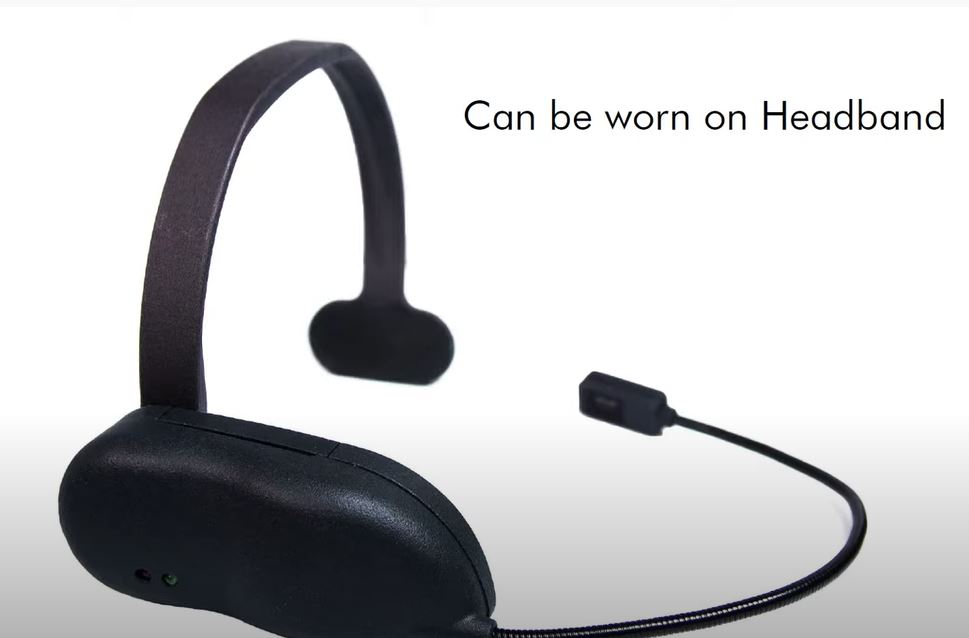

Flexible attachment loop for Headband (Optional Vento Headband available)
Functional design enables fixing with a cable tie or velcro strap

EASY PLUG AND PLAY INSTALLATION

Easily replaceable and inexpensive AAA battery
Long lasting battery life up to 2 years
Two sensitivity settings
Indicator lights
Buzzer on/off

See details tab for images and mounting options.

Technical Specifications

• Supplied with: Vento switch with puff sensor arm, battery, flat-head screwdriver and user manual
• Dimensions: Length 98 mm, width 41 mm, height 26 mm, vento arm length 220 mm and weight 97 g without batery. Cable length 180 cm.
• Battery: AAA battery, battery life up to 2 years depending on use and battery type
• Mounting: ¼” UNC thread (camera mount)
• Indication: Audible and visual indicators for switch activation and low battery
• Output: 3.5 mm audio plug (mono), opto-isolated normally open (NO) output, load current up to 100 mA, isolation 1500 VRMS
• Warranty: 2 years
